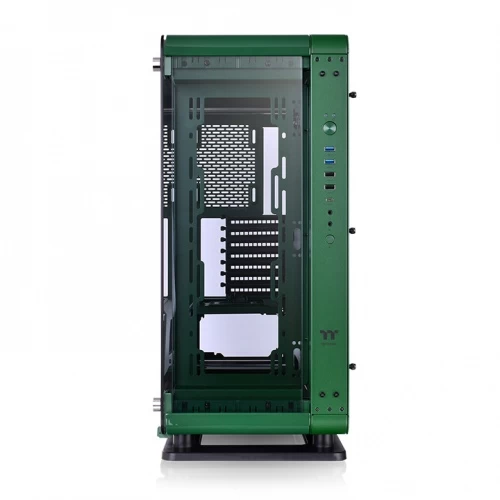

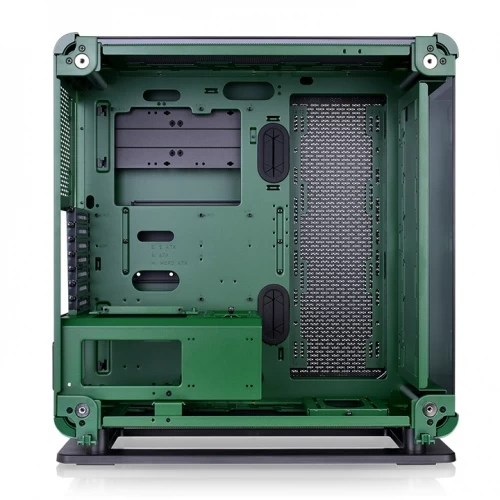

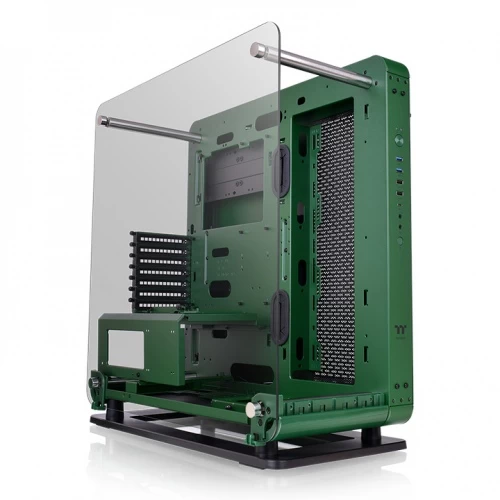

THERMALTAKE CORE P6 TG RACING GREEN

Spesifiaksi Produk :

The Core P6 TG Racing Green is a transformable CEB Mid Tower Case that can be either a closed or open styled case with Tt LCS certification.

Series
Core
CASE TYPE
Mid Tower
Dimension (H x W x D)
565 x 255 x 530mm
(22.2 x 10 x 20.9 inch)
NET WEIGHT
17.84 kg / 39.33 lbs.
SIDE PANEL
4mm Tempered Glass x 3
MATERIAL
SPCC
COOLING SYSTEM
-
Drive Bays
-Accessible
-Hidden
4 x 3.5” or 8 x 2.5”
EXPANSION SLOTS
7 (Rotatable Patented Design)
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5”(CEB)
I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm or 1 x 120mm
2 x 140mm, 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Bottom:
1 x 240mm, 1 x 120mm
CLEARANCE
CPU cooler height limitation:
180mm
VGA length limitation:
300mm (With Reservoir)
400mm (Without Reservoir)
430mm (With Radiator)
458mm (Without Radiator)
PSU length limitation:
200mm
