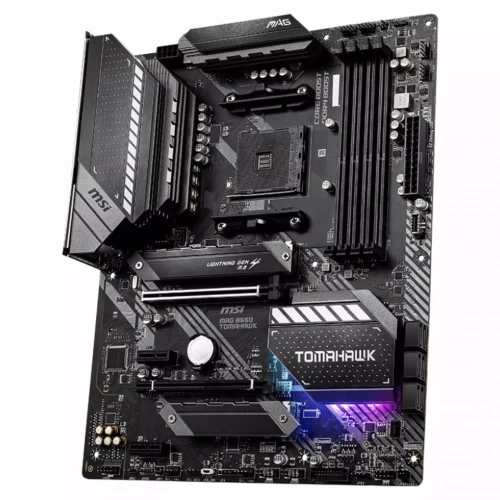

  3. MSI MAG B550 TOMAHAWK
  • CPU (MAX SUPPORT) : Ryzen 9
  • SOCKET : AM4
  • CHIPSET : AMD B550 Chipset
  • DDR4 MEMORY :5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
  • MEMORY CHANNEL : Dual
  • DIMM SLOTS : 4
  • MAX MEMORY (GB) : 128
  • PCI-E X16 : 2
  • PCI-E X1 : 2
  • SATAIII : 6
  • M.2 SLOT : 2
  • RAID : 0/1/10
  • LAN : 1x Realtek® RTL8125B 2.5G LAN + 1x Realtek® RTL8111H 1G LAN
  • USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
  • USB 2.0 PORTS (FRONT) : 4
  • USB 2.0 PORTS (REAR) : 2
  • AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC1200 / ALC1220P Codec)
  • DISPLAYPORT : 1
  • HDMI : 1
  • DIRECTX : 12
  • FORM FACTOR :  ATX
  • CROSSFIRE : Y
  • OPERATING SYSTEM : Support for Windows® 10 64-bit
