Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm@ F1.6, viewing angle: 48° (Vertical), 91° (Horizontal), 108° (Diagonal) 6mm@ F1.6, viewing angle: 30° (Vertical), 56° (Horizontal), 66° (Diagonal)

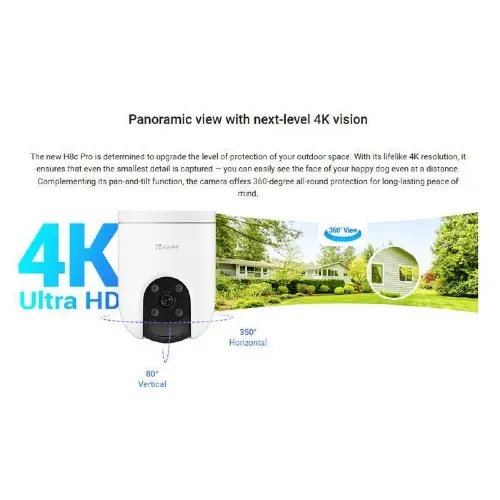

PT Angle: Pan: 350°, Tilt: 80°
Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
DNR: 3D DNR
WDR: Digital WDR
Black & White Night: 30m / 98ft


Video & Audio
Max Resolution: 3840 × 2160
Frame Rate: Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: WPA-PSK/WPA2-PSK
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)


Functions
Smart Alarm: AI-Powered Human / Vehicle Shape Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports microSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)


General
Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V/1A
Power Consumption: MAX. 12W
Dimensions: 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
Packaging Dimensions: 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)
Weight:
Net Weight: 539.7g;
With Package: 823.6g


In the box
- H8c Pro 4K Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
