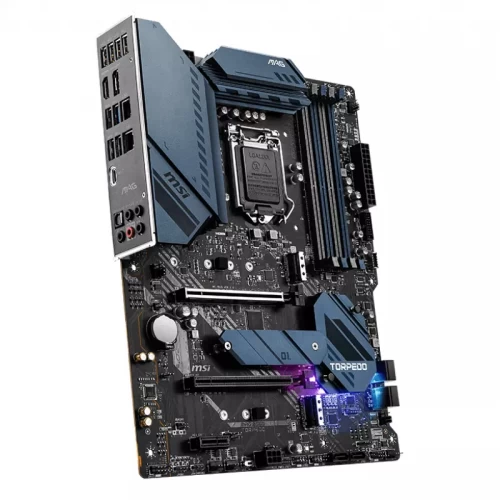

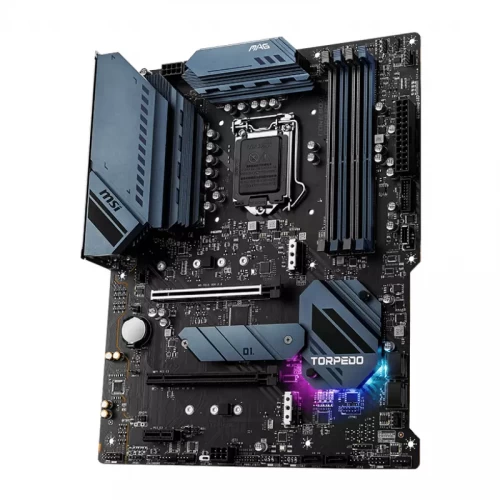

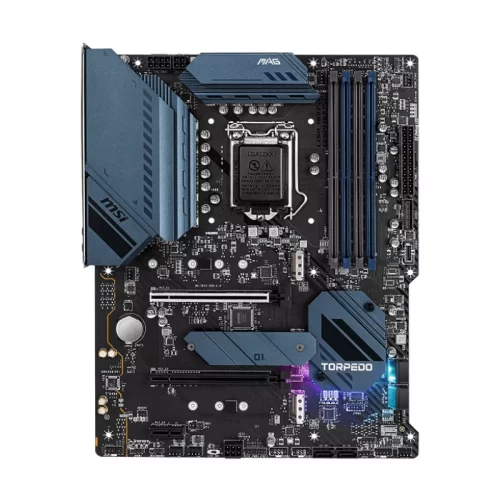

MSI MAG B560 TORPEDO

MAG B560 TORPEDO

Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
Audio Boost: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

SPECIFICATION :
CPU (Max Support) : i9
Socket : 1200
Chipset : Intel® B560 Chipset
DDR4 Memory : 5066(OC)/5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel : Dual
DIMM Slots : 4
Max Memory (GB) : 128
PCI-E x16 : 2
PCI-E x1 : 1
SATAIII : 6
M.2 Slot : 3
TPM (header) : 1
LAN : 1x Realtek® 8125B 2.5G LAN, 1x Intel® I219-V 1G LAN
USB 3.2 ports (Front) : 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear) : 1(Gen 2x2, Type C), 4(Gen 1, Type A)
USB 2.0 ports (Front) : 4
USB 2.0 ports (Rear) : 4
Audio ports (Rear) : Realtek® ALC897 Codec
DisplayPort : 1
HDMI : 1
DirectX : 12
Form Factor : ATX
CrossFire : Y
Operating System : Support for Windows® 10 64-bit
