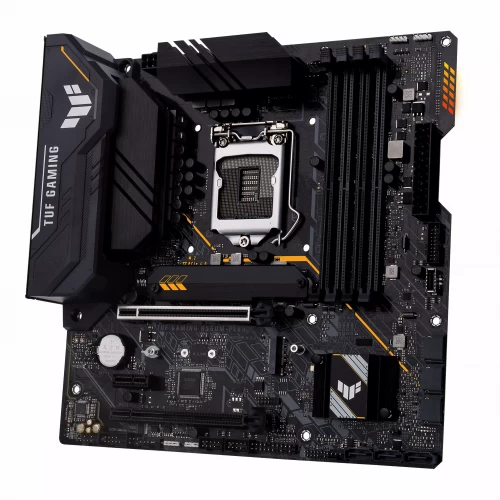

ASUS TUF GAMING B560M PLUS

SPECIFICATION :

CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU

Chipset
Intel® B560 Chipset

Memory
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
Graphics
1 x DisplayPort 1.4
1 x HDMI 2.0

Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

USB

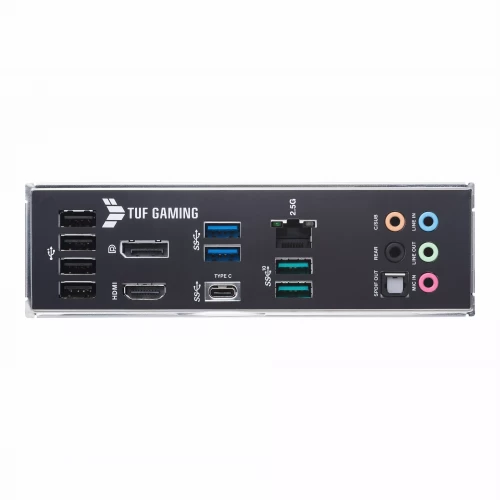

Rear USB:Total 9 ports
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)

Audio
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Form Factor
microATX
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
