Spesifikasi Produk :

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset : Intel® B760 Express Chipset

Memory
Support for DDR4 5333~3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

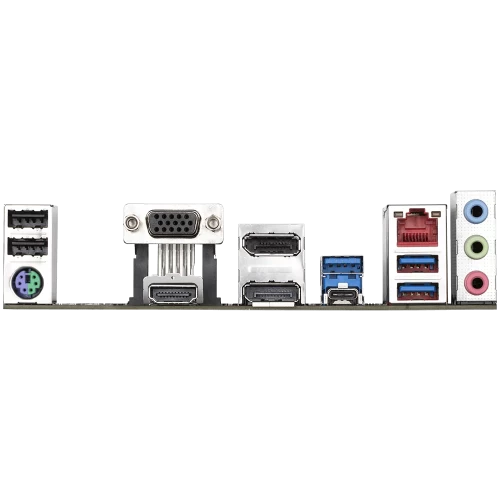

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI 2.0(HDCP 2.3) port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort 1.2(HDCP 2.3), supporting a maximum resolution of 4096x2304@60 Hz
1 x DisplayPort 1.2, supporting a maximum resolution of 4096x2304@60 Hz
(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time.

Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
