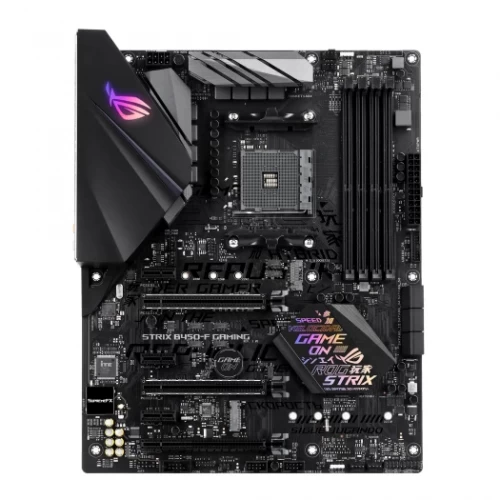

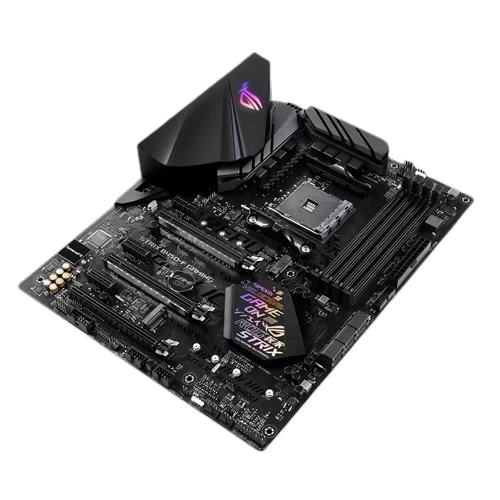

ASUS ROG B450F GAMING MAINBOARD

AMD AM4 B450 ATX gaming motherboard with DDR4 3200MHz support, SATA 6Gbps, HDMI 2.0, dual NVMe M.2, USB 3.1 Gen 2, and Aura Sync RGB LED lighting
AM4 socket: Ready for AMD Ryzen processors
Fast memory and storage: Dual-channel DDR4 3200MHz (OC) and NVM Express RAID supported.
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.

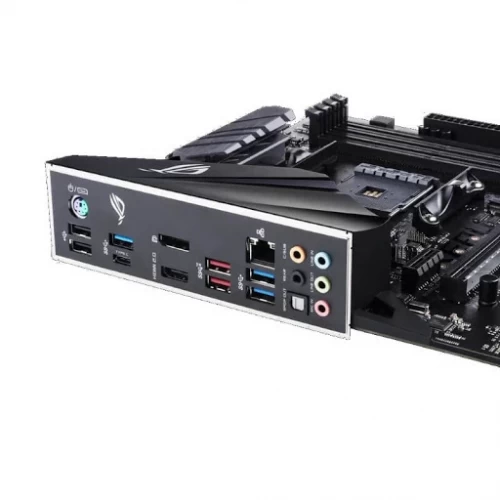

Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
Gamers Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

CPU
AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Ryzen 1st Generation Processors

Chipset
AMD B450
Memory
AMD Ryzen Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Graphic
Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support
AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors
Supports AMD 3-Way CrossFireX Technology
Expansion Slots
AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen with Radeon Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
