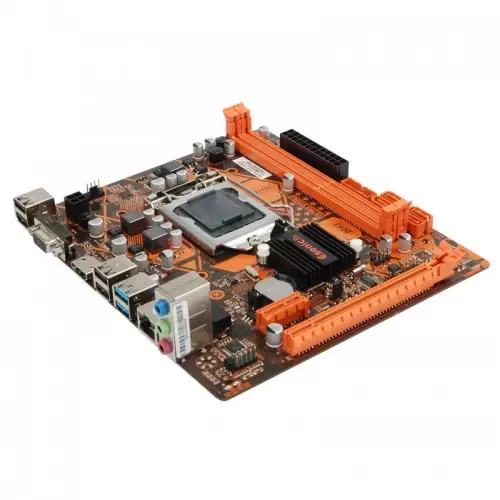

ESONIC H61 FHL

Spesifiaksi Produk :


CPU(Processor) - Intel Socket 1155 Core i7/Core i5/Core i3 Processors
Supports Intel Dynamic Speed Technology
Supports Intel 32 nm CPU
Chipset – Intel H61(B3)

Memory – Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)2 * DDR3 DIMMs (240 pin/ 1.5V)

Slots – 1 * PCI Express x16 Slot – 1 * PCI Express x1 Slot

Storage — 4* Serial ATA 2.0 devices

Internal I/O Connectors

1 * 24-pin ATX Power Connetor
1 * 4-pin ATX 12V Power Connetor
2 * USB connector support additional 4 USB ports
1 * LPC_DEBUG connector
1 * Front panel audio connector
1 * System Panel connector

Back Panel I/O Ports

1 * PS/2 Mouse/Keyboard
1 * VGA
1 * COM
4 * USB 2.0 / 1.1
1 * RJ45(LAN) Port – 1 * 3 Audio jacks

BIOS – EFI BIOS
LAN – On board Realtek 8105E 1000M LAN, Compliance with PCI 2.2
Audio – Chip integrated by Realtek ALC662, Supports 5.1-channel audio-out
