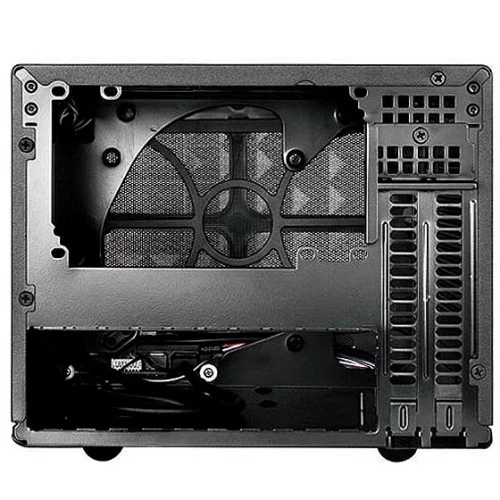

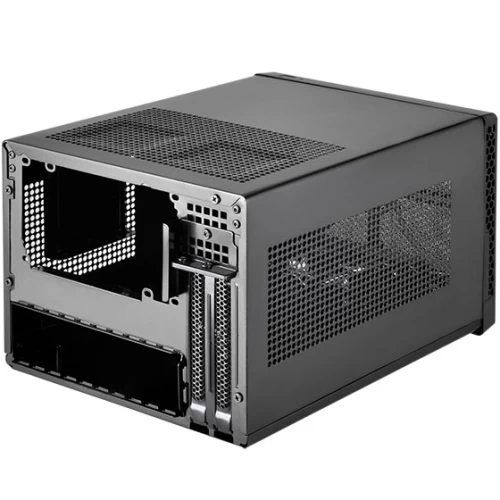

Model No. SST-SG13B (black, mesh front panel)
Material Mesh or plastic front panel, steel body
Motherboard Mini-DTX, Mini-ITX
Drive bay External --
--
Internal 3.5" x 1 or 2.5" x 2 , 2.5" x 1
Cooling system Front 1 x 120mm/140mm fan slot compatible with radiator(option)
Rear --
Side Oversized vents
Top Oversized vents
Bottom --
Internal --
Radiator support Front 120mm / 140mm x 1
Rear N/A
Top N/A
Bottom N/A
Expansion slot 2
Front I/O port USB 3.0 x 2
audio x 1
MIC x 1
Power supply Optional standard PS2(ATX)
Expansion card Compatible up to 10.5" (266mm) long, width restriction-5.11" (129mm)
Limitation of CPU cooler 61mm
Limitation of PSU 150mm*
Net weight SG13B:2.47Kg / SG13B-Q:2.43Kg
Dimension 222mm (W) x 181 mm (H) x 285 mm (D) 11.5 liters
8.74" (W) x 7.13" (H) x 11.22" (D) 11.5 liters
