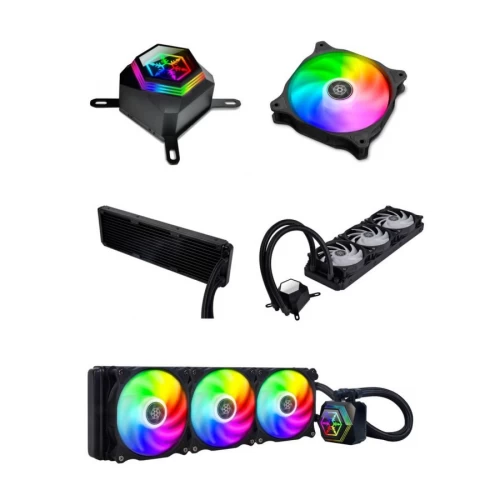

Model
Brand SILVERSTONE
Series PF360-ARGB
Model SST-PF360-ARGB
Type Liquid Cooling System

Block
Block Compatibility
Intel Socket LGA 2066 / 2011 / 1366 / 115X / 775
AMD Socket AM4 / AM3 / AM2 / FM2 / FM1

Block Dim. 2.4" (L) x 2.4" (W) x 1.97" (H) / 61mm (L) x 61mm (W) x 50mm (H)
Block Material Copper base with plastic body

Radiator
Radiator Dim. 15.51" (L) x 4.72" (W) x 1.1" (H) / 394mm (L) x 120mm (W) x 28mm (H)
Radiator Material Aluminum

Fan
Fan Size 3 Fan Slots (120mm)
Fan Dim. 4.72" (L) x 4.72" (W) x 0.98" (D) / 120mm (L) x 120mm (W) x 25mm (D)
Fan RPM 600 - 2200 RPM
Fan Air Flow 94 CFM
Fan Noise 7.4 - 35.6 dBA
Fan Connector 4 Pin PWM
Color Black
LED Color Addressable RGB

Tube
Tube Dim. Length: 400mm
Tube Material Rubber

Features
Water block includes a pump with multi chamber design that isolates hot and cold liquid channels to prevent heat bleeding, thus making it more effective at removing heat away from the water block.

The pump motor utilizes three phase, six pole design for smoother, quieter operation compared to most single phase, four pole design. Energy efficiency also improves as well.

0.2mm micro liquid channels evenly distribute liquid flow for improved heat dissipation

An automotive grade sine wave generator is used to drive the pump motor. This ensures electrical noise and vibration are kept to a minimum. It is also AEC-Q100 certified according to Automotive Electronics Council’s standard so it has great quality and durability.

Automotive grade radiator is used so it has excellent anti-corrosive properties and can easily survive harsh elements that includes vapor, liquid, grease, solvent.

Included PWM fan has unique ribbed edge fan blades that suppress air turbulent noise with geometry optimized for both air flow and pressure. This ensure maximum performance with lowest possible noise.
