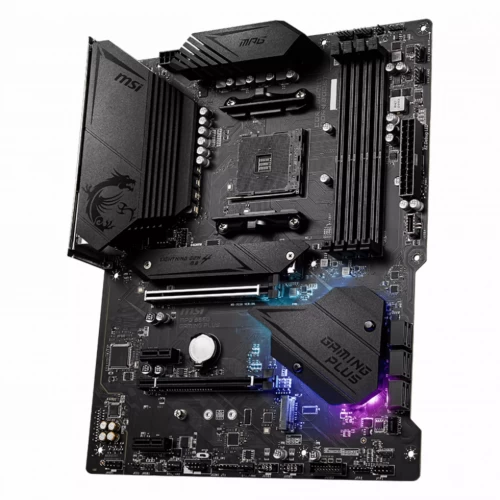

  3. MSI MPG B550 GAMING PLUS
  • CPU (MAX SUPPORT) : RYZEN 9
  • SOCKET : AM4
  • CHIPSET : AMD B550 CHIPSET
  • DDR4 MEMORY : Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
  • MEMORY CHANNEL : Dual
  • DIMM SLOTS : 4
  • MAX MEMORY (GB) : 128
  • PCI-E X16 : 2
  • PCI-E X1 : 2
  • SATAIII : 6
  • M.2 SLOT : 2
  • RAID : 0/1/10
  • TPM (HEADER) : 1
  • LAN : 1x Realtek® 8111H Gigabit LAN controller
  • USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)
  • USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
  • USB 2.0 PORTS (FRONT) : 4
  • USB 2.0 PORTS (REAR) : 4
  • AUDIO PORTS (REAR) : Realtek® ALC892/ALC897 Codec
  • DISPLAYPORT : 1
  • HDMI : 1
  • DIRECTX : 12
  • FORM FACTOR : ATX
  • CROSSFIRE : Y
  • OPERATING SYSTEM : Support for Windows® 10 64-bit
