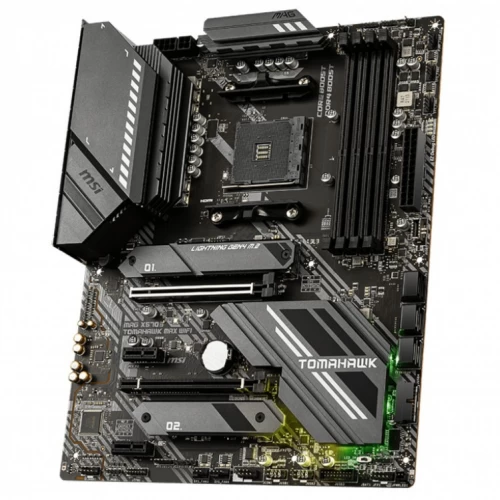

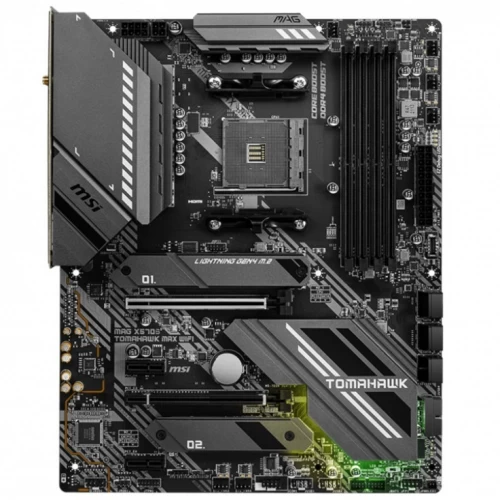

MAG X570S TOMAHAWK MAX WIFI

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Memory

4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
Max overclocking frequency by A-XMP OC mode:
For Ryzen™ 5000 G-Series & 4000 G-Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4266 MHz
2DPC 2R Max speed up to 3600 MHz
For Ryzen™ 5000 Series & 3000 Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 3866 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
