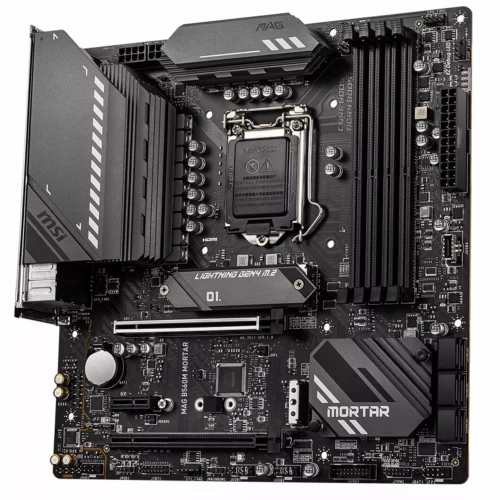

  3. MSI MAG B560M MORTAR
  • CPU (MAX SUPPORT) : i9
  • SOCKET : 1200
  • CHIPSET : Intel® B560 Chipset
  • DDR4 MEMORY : 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
  • MEMORY CHANNEL : Dual
  • DIMM SLOTS : 4
  • MAX MEMORY (GB) : 128
  • PCI-E X16 : 2
  • PCI-E X1 : 1
  • SATAIII : 6
  • M.2 SLOT : 2
  • LAN : 1x Realtek® 8125B 2.5G LAN
  • USB 3.2 PORTS (FRONT) : 1(Gen 2, Type C), 2(Gen 1, Type A)

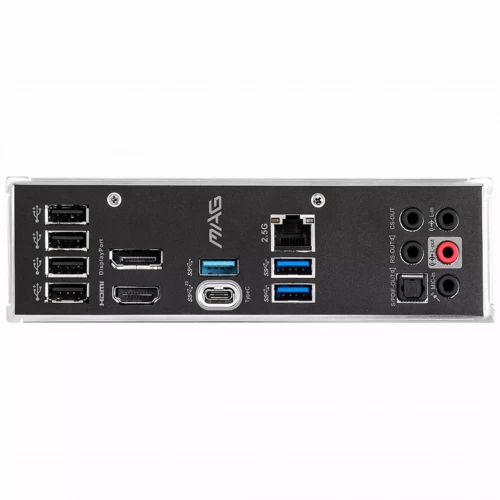

  • USB 3.2 PORTS (REAR) : 1(Gen 2x2, Type C), 3(Gen 1, Type A)
  • USB 2.0 PORTS (FRONT) : 4
  • USB 2.0 PORTS (REAR) : 4
  • AUDIO PORTS (REAR) : Realtek® ALC897 Codec
  • DISPLAYPORT : 1
  • HDMI : 1
  • FORM FACTOR : m-ATX
  • CROSSFIRE : Y
  • OPERATING SYSTEM : Support for Windows® 10 64-bit
