Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
Up to 80% efficiency
120mm silent fan with temperature control function
The longer black flat cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield? OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs

Technical Spec

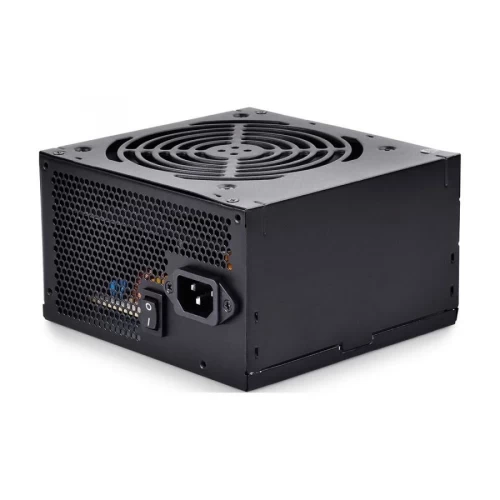

Model DN500 (Black flat cable)
Type ATX 12V V2.31
Dimension mm (W x L x H)
Output Capacity 500W
Input Voltage 160-230V
Input Current 4A
Input Frequency Range 50~60Hz
Fan Size 120mm
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 80% Under Typical Load
Protection OVP/UVP/SCP/OPP
Operation Temperature 0~40C
Regulatory CE/CB/EAC/CCC
MTBF 100,000 Hours
