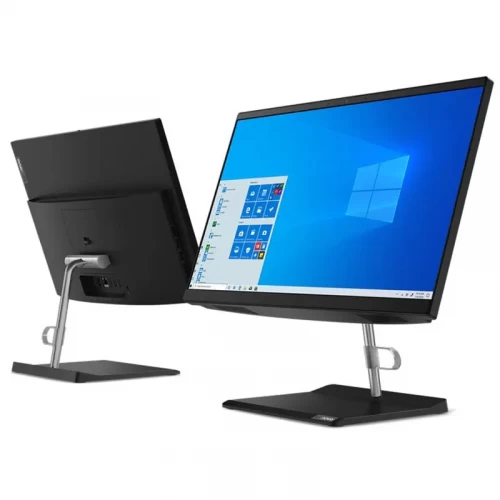

Lenovo V30a-22IIL AIO
Model : 11LC004CID
Processor Intel Core i3-1005G1 (2C / 4T, 1.2 / 3.4GHz, 4MB)
Graphics Integrated Intel UHD Graphics
Chipset 8GB SO-DIMM DDR4-3200
Memory Slots Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory Up to 16GB DDR4-3200
Storage 1TB HDD 7200rpm 2.5"
Optane Memory None
Storage Support "Up to two drives, 1x 2.5"" HDD + 1x M.2 SSD
• 2.5"" HDD up to 1TB
• M.2 SSD up to 512GB"
Card Reader 3-in-1 Card Reader
Optical 9.0mm DVD±RW
Audio Chip High Definition (HD) Audio, Realtek ALC233 codec
Speakers 3Wx2
Camera 720p
Microphone 2x, Array
Power Supply 65W 88% Adapter
DESIGN
Display 21.5" FHD (1920x1080) IPS Anti-glare
Touchscreen None
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Two M.2 slots (one for WLAN, one for SSD)
Case Color Raven Black
Stand Monitor Stand
Mounting VESA Mount
Form Factor AIO (22 inches)
Dimensions (WxDxH) 490 x 220 x 420 mm (19.3 x 8.7 x 16.5 inches)
Weight 6 kg (13.2 lbs)
CONNECTIVITY
Ethernet Integrated 100/1000M
WLAN + Bluetooth Intel 9560 11ac, 2x2 + BT5.0

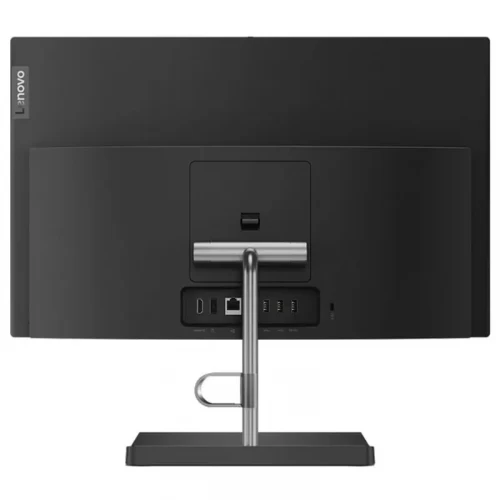

Rear Ports "1x USB 3.2 Gen 1
1x HDMI-in
1x power connector
1x Ethernet (RJ-45)
1x HDMI-out 1.4
2x USB 2.0"

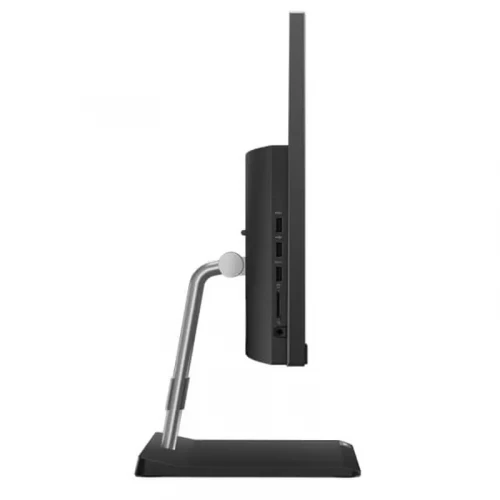

Left Ports "1x headphone / microphone combo jack (3.5mm)
1x card reader
1x USB 3.2 Gen 1
2x USB 2.0"
Optional Left Ports (configured) None
Right Ports None
Optional Right Ports (configured) None
SECURITY & PRIVACY
Security Chip Firmware TPM 2.0 integrated in chipset
Fingerprint Reader No fingerprint reader
Physical Locks Kensington Security Slot
Other Security Camera privacy shutter
SERVICE
Warranty 3-year Onsite
CERTIFICATIONS
Green Certifications "ENERGY STAR 8.0
EPEAT Silver
RoHS compliant"
Other Certifications "TÜV Rheinland Low Blue Light
TÜV Rheinland Ultra Low Noise"
SOFTWARE
Operating System Windows 10 Home 64, English
