Model : Mecha
Case Type : Mid Tower
Color : Black
Body Material : SPCC
Front Panel Material : ABS
Steel Thickness : 0.5mm
Motherboards : ATX/micro ATX/mini-ITX
Case Dimensions (Internal) : 200 x 430 x 305mm (W x H x D)
Case Dimensions (Overall) : 205 x 442 x 370mm (W x H x D)
3.5” Drive Bays : 2 Max. (1 x 3.5” and 1 x 3.5”/2.5″)
2.5” Drive Bays : 3 Max. (2 x 2.5” and 1 x 2.5”/3.5”)
Expansion Slots : 7
GPU Clearance : Supports GPU up to 302mm (without front fan)
CPU Clearance : Supports CPU up to 159mm

Air Cooling Front: 120mm x 2 or 140mm x 2 (Max.)
Top : 120mm x 1 (Max.)
Rear : 120mm x 1 (Optional)

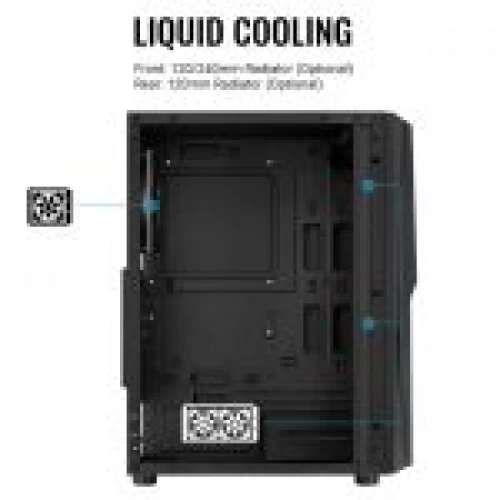

Liquid Cooling
Front: 120/240mm Radiator (Optional)
Rear: 120mm Radiator (Optional)

I/O Ports : USB3.0 x 2 | HD Audio & Mic. (Mecha-G-BK-v3: USB3.0 x 2 + USB2.0 x 1)
Internal Cable Management Depth : 18.9mm
